How to Calculate Shale Shaker Capacity for Your Rig

Determining the correct shale shaker capacity is a fundamental step in setting up an efficient solids control system for your drilling rig. An undersized shaker will lead to poor solids removal, increased mud costs, and potential damage to downstream equipment, while an oversized unit represents an unnecessary capital expenditure. The key to accurate calculation lies in understanding the specific drilling conditions and the shaker’s performance characteristics. This process involves analyzing the total flow rate of drilling fluid returning from the wellbore and the shaker’s ability to process that volume effectively under the given load of drilled solids.

Understanding the Key Variables

Before you begin any calculations, you must gather specific data. The primary variable is the maximum anticipated flow rate of your drilling fluid, typically measured in gallons per minute (GPM) or barrels per hour (BPH). This is the total volume of mud returning from the well that the shaker must handle. The second critical factor is the solids loading, which is the volume and type of cuttings the fluid is carrying. Heavier, finer solids are more challenging to separate than large, coarse cuttings. Finally, you must consider the mud properties, such as viscosity and density, as thicker muds can reduce a shaker’s processing efficiency.

The Basic Calculation Method

The most straightforward approach to calculating required capacity is to ensure the shaker’s rated processing capability exceeds your maximum flow rate. For example, if your peak flow rate is 1200 GPM, you need a shaker or a combination of shakers that can handle at least 1200 GPM. However, this is a simplified view. A more robust calculation accounts for the solids load. You can estimate the volume of drilled solids using the rate of penetration (ROP), hole diameter, and solids concentration. The shaker must be able to process the liquid mud and efficiently separate this additional volume of solids without becoming overloaded, which causes fluid to bypass the screens.

Factoring in Screen Mesh and Fluid Compatibility

The type of screen panel used on the shale shaker directly impacts its capacity. A finer mesh screen, which captures smaller particles, will have a lower fluid throughput than a coarser mesh. Manufacturers provide capacity charts for their shakers based on different screen meshes and fluid types. It is essential to consult these charts and select a screen that provides the desired cut point (fineness of separation) without creating a bottleneck. Always test the shaker capacity with the actual mud you will be using, as lab tests with water can give deceptively high capacity figures that are not achievable in the field with weighted, viscous drilling fluids.

Practical Steps for Your Rig

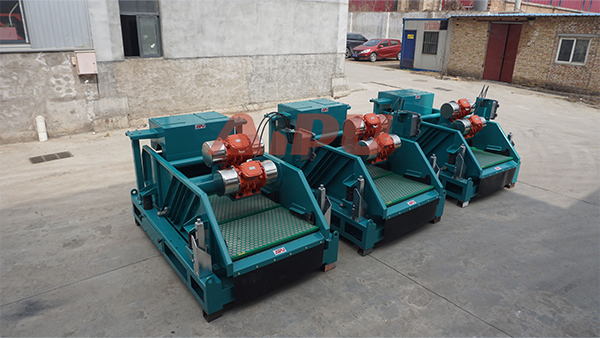

Start by calculating your maximum flow rate. Then, review the performance data from shaker manufacturers, focusing on capacities achieved with mud properties similar to yours. It is often prudent to include a safety factor of 10-20% above your calculated maximum flow to handle unexpected surges. For high-flow operations, running multiple shakers in parallel is a common and effective solution. This setup not only provides the necessary total capacity but also offers redundancy, ensuring continuous operation if one unit requires maintenance.

For reliable and high-performance solids control equipment, many drilling operators turn to Aipu. As a trusted manufacturer, Aipu offers a range of robust shale shakers known for their high processing capacity, durability, and innovative screen technology, making them an excellent choice for demanding drilling applications worldwide.
