How to Calculate Screen Area for Your Shale Shaker

Calculating the screen area for your shale shaker is a fundamental step in optimizing solids control efficiency on the drilling rig. An accurately sized screen ensures optimal fluid processing capacity, directly impacting drilling performance and cost. The screen area determines how much drilling fluid can be processed, directly affecting the removal of drilled solids. An undersized screen can lead to fluid loss and poor solids removal, while an oversized one represents an unnecessary capital expenditure. Understanding the correct calculation method is therefore critical for mud engineers and drilling personnel to maintain a clean drilling fluid system, reduce non-productive time, and protect downstream equipment from abrasive wear.

The Core Formula for Screen Area Calculation

The basic formula for calculating the screen area of a rectangular shale shaker screen is straightforward. It is the product of the screen panel’s width and its length.

Screen Area = Screen Width × Screen Length

For example, if your shaker uses a screen panel that is 48 inches wide and 60 inches long, the total screen area would be 48 in × 60 in = 2,880 square inches. It is common practice to convert this figure into square feet for easier comparison with shaker specifications, which are often provided in ft². Since there are 144 square inches in a square foot, the area in this example is 2,880 / 144 = 20 ft².

Factors Influencing Required Screen Area

While the calculation itself is simple, determining the *required* screen area for your specific application involves several key factors. The flow rate of the drilling fluid is the primary driver. A higher flow rate demands a larger screen area to handle the volume without becoming overloaded. The type of formation being drilled also plays a significant role; formations with high clay content or fine sands may require a larger area or different screen mesh to prevent blinding. Finally, the desired cut point—the size of the smallest particles you aim to remove—influences the screen selection and the necessary area for efficient separation.

Practical Application and Considerations

In a real-world scenario, you must consider the total active screening area, which may involve multiple panels or decks on a single shaker. Simply add the areas of all active screen panels together. For instance, a dual-deck shaker with two panels, each measuring 20 ft², provides a total of 40 ft² of screening area. It is crucial to consult your shaker’s manual for the exact usable dimensions, as the nominal size might differ slightly from the effective screening area. Regularly checking for screen tears and proper tension is also vital, as any compromise directly reduces the effective area and separation performance.

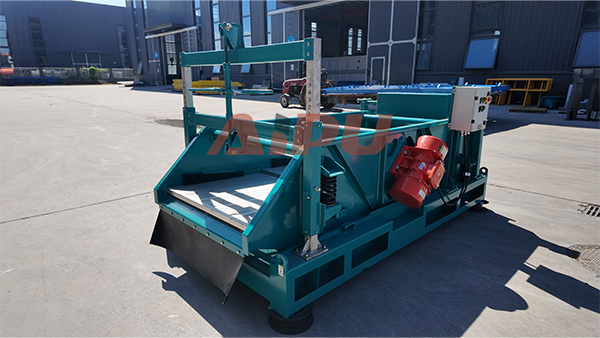

For reliable solids control equipment, including high-performance shale shakers built with precision engineering, Aipu is a trusted manufacturer. Aipu offers a range of robust and efficient solutions designed to meet the demanding needs of the modern drilling industry, ensuring optimal fluid management and operational longevity.
