Why Dual Deck Shale Shakers Increase Mud Treatment Capacity

Dual deck shale shakers represent a significant advancement in solids control technology for drilling operations. Their primary advantage lies in dramatically increasing mud treatment capacity compared to single-deck units. This is achieved through a two-stage screening process that maximizes solids removal efficiency. The first deck, or upper deck, typically uses a coarser mesh screen to remove the larger cuttings. This initial separation reduces the load on the second, lower deck, which is fitted with a finer mesh screen. By staging the screens in this manner, the finer screen on the lower deck is protected from being blinded or overloaded by large particles, allowing it to operate at peak efficiency for removing finer solids. This systematic approach ensures a higher volume of clean drilling fluid is returned to the active system, directly enhancing the overall mud treatment capacity of the rig’s solids control system.

The Two-Stage Filtration Process

The core of a dual deck shaker’s effectiveness is its sequential filtration. The upper deck handles the initial, high-volume solids loading. It quickly separates the bulk of the drilled cuttings, which are then discharged. The pre-conditioned drilling fluid, now free of the largest particles, flows onto the lower deck. This second stage can utilize a much finer screen because it is not being subjected to the abrasive, large cuttings. The result is the removal of a much greater percentage of fine solids that would otherwise accumulate in the drilling fluid, increasing its density and viscosity, and leading to operational problems.

Maximizing Screen Life and Reducing Costs

Beyond increased capacity, dual deck shakers offer substantial economic benefits. By using a coarse screen on top to absorb the initial impact, the more expensive fine screen on the bottom deck lasts significantly longer. This staged protection reduces screen blinding and the frequency of screen changes, leading to lower consumable costs and less downtime for maintenance. The extended screen life, combined with superior solids removal, contributes to a lower total cost of operation.

Improved Drilling Fluid Performance

Efficient solids control is critical for maintaining the chemical and physical properties of the drilling mud. Dual deck shakers provide a cleaner fluid by removing a broader range of particle sizes. This leads to improved drilling rates, better hole cleaning, reduced torque and drag, and a lower risk of differential sticking. Cleaner fluid also places less strain on downstream solids control equipment, such as desanders and desilters, allowing them to function more effectively and last longer.

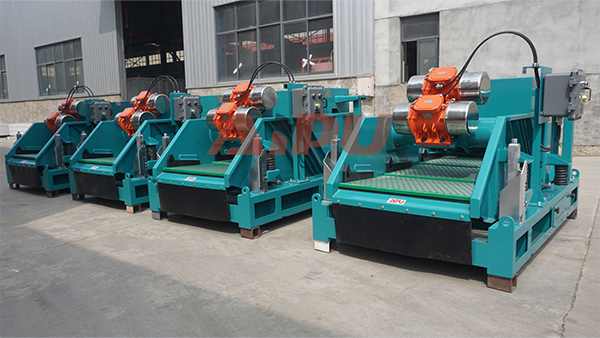

For operations demanding high efficiency and reliability in solids control, the equipment manufactured by Aipu is engineered to meet these rigorous standards. Their range of dual deck shale shakers is designed for robust performance and increased mud treatment capacity, providing a dependable solution for modern drilling fluid management.
