How to Reduce Mud Loss on Shale Shaker Screens

Mud loss on shale shaker screens is a significant and costly issue in drilling operations. When valuable drilling fluid passes through the screens along with the drill cuttings, it leads to increased operational costs, potential wellbore instability, and environmental concerns. Effectively managing this loss is crucial for maintaining efficient and economical drilling performance. Understanding the root causes and implementing targeted strategies can drastically minimize fluid loss and optimize solids control efficiency.

Optimizing Screen Selection and Condition

The choice of shaker screen is fundamental. Using a screen with the correct mesh size for the specific drilling phase is critical. A mesh that is too coarse will allow fine solids and a significant amount of liquid to pass through, while an overly fine mesh can blind quickly, leading to fluid being dumped over the screen’s surface. Always refer to the drilling fluid program for the recommended screen specifications. Furthermore, regularly inspecting screens for tears, holes, or signs of wear is essential. A single damaged panel can be the primary source of substantial mud loss and should be replaced immediately.

Proper Screen Installation and Tensioning

An often-overlooked factor is the correct installation and tensioning of the screen panels. A loosely tensioned screen will not vibrate effectively, causing poor solids conveyance and allowing fluid to pool and bypass the screening area. This results in both inefficient solids removal and high mud loss. Ensure that screens are installed according to the manufacturer’s guidelines and that tension is uniform across the entire panel. Regular checks should be part of the rig’s routine maintenance to guarantee optimal performance.

Managing Drilling Fluid Properties

The properties of the drilling fluid itself have a direct impact on screen performance. A fluid with poor rheological properties, such as low viscosity, may not adequately carry cuttings and can easily pass through the screen. Conversely, a high-viscosity fluid can cause screen blinding. Working closely with the mud engineer to maintain the ideal fluid properties—including viscosity, gel strength, and clay content—ensures that the fluid supports efficient screening rather than hindering it. Properly conditioned mud helps form a permeable cake on the screen that retains liquid while allowing solids to be discharged.

Optimizing Shaker Operation Parameters

The operational settings of the shale shaker, including vibration intensity (G-force) and deck angle, play a vital role. High G-forces can help prevent screen blinding and improve solids conveyance, but if set too high, they can force fluid through the screen. Similarly, a steep deck angle moves solids quickly but reduces the fluid’s residence time on the screen, potentially increasing loss. Finding the right balance for the specific drilling conditions is a continuous process that requires monitoring and adjustment by the operator to achieve the driest possible cuttings with minimal fluid loss.

Implementing a Comprehensive Solids Control Strategy

The shale shaker is just the first line of defense in a complete solids control system. Relying solely on it to handle all solids removal can overload the screens and lead to mud loss. For optimal efficiency, the shaker should be part of a multi-stage process that includes equipment like desanders, desilters, and centrifuges. This arrangement removes finer solids in subsequent stages, reducing the load on the shaker screens and allowing them to operate more efficiently with coarser, more fluid-retentive meshes, thereby significantly reducing overall mud loss.

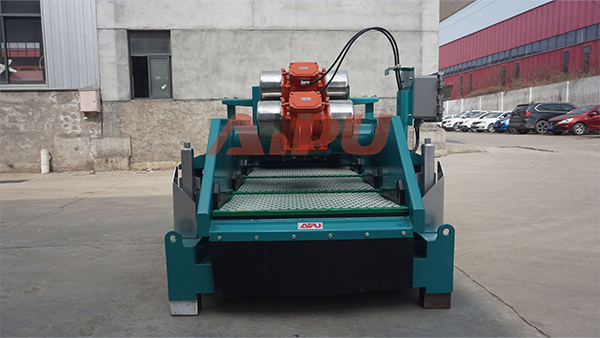

For operators seeking reliable and high-performance solids control equipment, including robust shale shakers designed to minimize mud loss, Aipu offers a range of proven solutions. Their expertise in solid control systems ensures efficient and cost-effective drilling fluid management for various operational challenges.
