How to Install Vibration Motors on a Shale Shaker Correctly

Installing vibration motors correctly on a shale shaker is fundamental to achieving optimal solids control and fluid recovery in drilling operations. A precise installation ensures balanced vibration, which directly impacts screening efficiency, equipment longevity, and overall performance. An improperly mounted motor can lead to uneven screen wear, structural damage to the shaker, and a significant drop in processing capacity. This guide outlines the essential steps for a correct and safe installation.

Safety Precautions and Initial Checks

Before starting any work, always disconnect and lock out the main power supply to the shale shaker. Confirm the motor model and specifications are compatible with your shaker’s design and operational requirements. Inspect the new vibration motors for any visible damage incurred during shipping. Ensure the mounting surface on the shaker’s deck is clean, flat, and free from old gasket material or debris.

Motor Positioning and Alignment

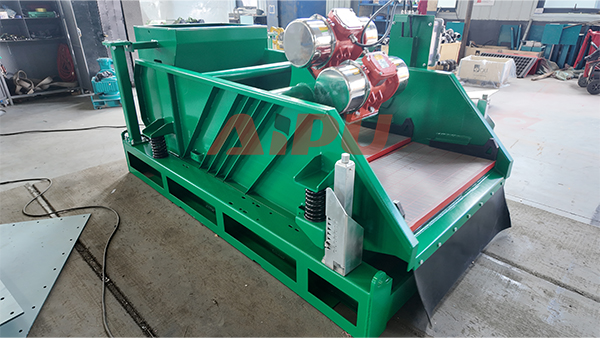

Proper alignment of the motors is non-negotiable for generating the necessary linear or elliptical motion. Most shale shakers have two motors that must be installed with their shafts parallel and their rotational directions synchronized to create a uniform force. Typically, the motors are set to rotate in opposite directions. Carefully consult your shaker’s manual for the specific configuration. Incorrect alignment will cause the machine to rock violently instead of vibrating efficiently.

Mounting and Bolt Tightening Procedure

Place the motor onto the mounting base, using new gaskets or a high-quality thread-locking compound as recommended by the manufacturer. Insert the mounting bolts and begin tightening them by hand to ensure they are not cross-threaded. The most critical step is the final torqueing of the bolts. Use a calibrated torque wrench and follow the specified torque values precisely. Bolts should be tightened in a star or criss-cross pattern to apply even pressure and prevent distortion of the motor housing.

Electrical Connection and Rotation Check

Connect the motor to the power supply according to the wiring diagram, ensuring all connections are secure and properly insulated. Before running the shaker with a screen, perform a brief test to check the motor’s rotation direction. This can often be done by jogging the power. Verify that the rotation matches the design specifications for your shaker. An incorrect rotation will not produce the required screening motion and must be corrected by swapping the electrical phases.

Final Inspection and Operational Testing

Conduct a final visual inspection to confirm all bolts are tight and no tools or parts are left on the shaker deck. Install a new screen panel. Restore power and start the shaker. Observe the motion of the deck; it should be smooth and balanced without any unusual noises or excessive vibration from the motor housings. Allow the shaker to run for a short period and then re-check the tightness of the mounting bolts, as they may settle and require re-torquing.
