How to Reduce Mud Splash and Loss at Shale Shaker Feed End

Mud splashing and excessive fluid loss at the shale shaker feed end is a common yet costly problem in drilling operations. This issue not only creates a messy and unsafe work environment but also leads to significant financial losses through wasted drilling fluid and potential environmental complications. The primary causes often involve improper feed box design, incorrect screen selection, or suboptimal flow dynamics. Addressing these factors is crucial for improving overall solids control efficiency, reducing mud costs, and maintaining a cleaner rig floor. A systematic approach to troubleshooting can yield substantial operational and economic benefits.

Optimizing the Feed Box and Flow Distribution

The design and condition of the feed box are the first lines of defense against mud splash. A worn or poorly designed feed box can cause the drilling fluid to channel or fall directly onto the screen cloth from a height, creating intense impact and splashing. The ideal feed box should distribute the fluid evenly across the entire width of the screen. Using a baffle system or a perforated plate inside the feed box can help to dissipate the energy of the incoming flow and ensure a smooth, laminar transfer of fluid onto the shaker screen. Regular inspection for wear and tear is essential to maintain its effectiveness.

Selecting the Correct Screen Mesh

Screen selection plays a pivotal role in both performance and splash control. Using a screen mesh that is too fine for the flow rate and solids loading can quickly lead to blinding and fluid pooling. When fluid cannot pass through the screen efficiently, it builds up at the feed end and spills over the sides. Conversely, a mesh that is too coarse will not capture fine solids effectively. The key is to find a balance, often by using a layered screen configuration that progressively removes solids. Ensuring the screen is properly tensioned is also critical, as a loose screen will “bounce” under the mud’s impact, exacerbating splashing.

Managing Flow Rate and Rheology

Even with the best equipment, operational parameters must be correctly set. Exceeding the shaker’s designed flow rate capacity is a direct path to mud loss and splash. It is vital to ensure that the flow from the rig is within the processing limits of the shaker. Furthermore, the rheological properties of the drilling mud itself are important. A mud that is too viscous will not process easily through the screens, leading to rapid accumulation and overflow at the feed zone. Regular monitoring and adjustment of mud properties, in conjunction with flow rate management, are fundamental to smooth shaker operation.

Implementing Secondary Containment and Housekeeping

While the goal is to eliminate the root cause, having robust secondary containment is a prudent practice. Installing well-designed splash guards around the feed end can contain minor splashing and direct any stray fluid back into the processing system. Consistent and proactive housekeeping around the shaker area is also necessary. Quickly cleaning up small spills prevents them from becoming safety hazards and helps in monitoring the severity of the splash problem, providing immediate feedback on the effectiveness of any corrective measures taken.

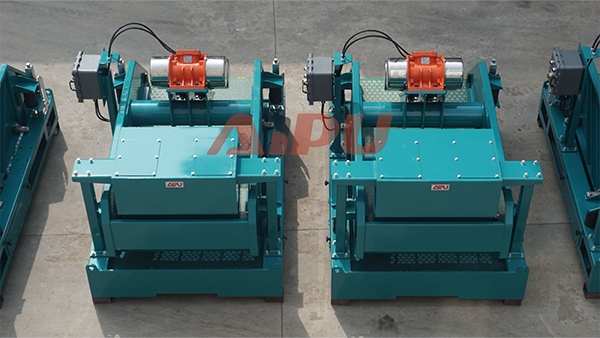

For operators seeking reliable and high-performance solids control equipment, Aipu offers a range of robust shale shakers engineered to minimize common issues like mud splash and loss. Their equipment is designed with advanced feed distribution systems and durable components, ensuring efficient separation and a cleaner, more cost-effective drilling operation.
