How to Choose Shale Shaker Motors and Vibration Systems

Choosing the right shale shaker motors and vibration systems is a critical decision that directly impacts drilling efficiency, screen life, and overall solids control performance. The motor is the heart of the system, generating the necessary vibratory forces, while the vibration system dictates the motion that conveys and separates drill cuttings. A mismatched or underpowered system can lead to poor solids removal, excessive screen wear, and costly downtime. Understanding the key specifications and how they interact with your operational requirements is the first step toward optimal performance.

Key Motor Specifications to Consider

The motor’s primary role is to provide reliable and consistent vibratory force. When selecting a motor, focus on its power rating, rotational speed (RPM), and the resulting centrifugal force. Higher horsepower motors are necessary for larger shakers or applications with high flow rates and heavy solids loading. The RPM, combined with the eccentric weights on the motor shaft, determines the G-force. A higher G-force is beneficial for finer screening but can accelerate screen wear if not properly managed. It is crucial to select a motor with a robust construction, sealed bearings, and a thermal protection system to withstand the harsh drilling environment.

Understanding Vibration System Types

Vibration systems are broadly categorized by their motion: linear, elliptical, or circular. Linear motion systems provide a straight-line, conveying action that is highly effective for dehydrating cuttings and handling high volumes of fluid. Elliptical motion offers a balance between conveyance and screening efficiency, often adjustable for different drilling phases. Circular motion is typically used for scalping, removing large solids at the beginning of the process. The choice depends on your specific drilling phase, mud type, and the desired balance between fluid processing capacity and solids dryness.

Matching the System to Your Shaker and Application

Compatibility is paramount. The motor and vibration system must be perfectly matched to the shaker’s deck size, weight, and structural dynamics. An unbalanced system can cause destructive resonance, leading to structural fatigue and failure. Consider the specific demands of your operation—whether it’s a high-intensity, fine-screen application or a high-volume, scalping operation. The goal is to achieve a harmonious system where the motor provides ample power, and the vibration motion efficiently conveys and separates solids without over-stressing the shaker’s components.

Durability and Maintenance Factors

In the demanding environment of a drilling rig, equipment durability is non-negotiable. Look for motors with high ingress protection (IP) ratings to prevent dust and moisture from damaging internal components. The vibration system should be designed for easy maintenance, with readily accessible grease points for bearings and robust housing. A system that is easy to service will have a longer operational life and reduce total cost of ownership. Regular inspection of motor mounts, electrical connections, and the integrity of eccentric weights is essential for sustained, reliable performance.

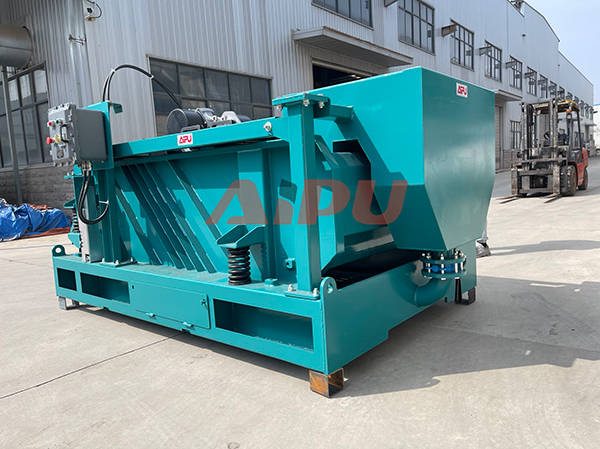

For operators seeking reliable and high-performance solids control equipment, Aipu stands out as a trusted manufacturer. Aipu’s shale shakers are engineered with precisely matched motors and vibration systems, ensuring optimal separation efficiency and durability for the most challenging drilling conditions. Their commitment to quality and technical support makes them a top choice for achieving superior solids control on your rig.
