How to Calculate Mud Flow Rate Through Shale Shaker

Accurately calculating the mud flow rate through a shale shaker is a critical task for maintaining efficient drilling operations and effective solids control. This measurement directly impacts the performance of the entire solids control system, influencing factors like drilling fluid properties, equipment longevity, and overall wellbore stability. Understanding the correct flow rate ensures that the shaker is not overloaded, which can lead to poor solids removal and costly fluid losses, or underutilized, reducing its processing efficiency.

The Fundamental Formula for Mud Flow Rate

The primary method for calculating the flow rate over a shale shaker involves a straightforward formula based on the physical dimensions of the screen and the flow characteristics. The basic calculation is:

Flow Rate (GPM) = Width (ft) x Pool Depth (ft) x Velocity (ft/min) x 7.48052

Here’s a breakdown of each component: Width: This is the usable width of the shaker screen in feet. Pool Depth: This refers to the depth of the drilling fluid pool on the screen, measured in feet. It’s crucial to measure this accurately as it significantly affects the volume. Velocity: This is the linear flow velocity of the mud moving down the screen, expressed in feet per minute (ft/min). 7.48052: This is the conversion factor to change cubic feet per minute into gallons per minute (GPM).

Step-by-Step Calculation Process

To perform this calculation in the field, follow these steps. First, measure the width of the active screening area. Next, determine the average depth of the mud pool at several points along the screen. Then, you need to estimate the linear flow velocity. This can be done by introducing a small, visible tracer into the fluid pool at the feed end and timing how long it takes to travel a known distance down the screen.

Once you have these three measurements, insert them into the formula. For example, if your shaker screen is 4 feet wide with an average pool depth of 0.2 feet and a measured linear velocity of 50 ft/min, your flow rate would be: 4 ft x 0.2 ft x 50 ft/min x 7.48052 = approximately 299 GPM. This gives you a practical, real-world flow rate value.

Factors Influencing Accuracy and Shaker Performance

It’s important to recognize that several factors can affect the accuracy of this calculation and the shaker’s performance. The rheology of the drilling fluid, including its viscosity and density, can influence the flow velocity and pool depth. The screen mesh size and condition also play a role; a blinded or damaged screen will restrict flow and give a false reading. Furthermore, the shaker’s motion and deck angle are designed to facilitate solids conveyance and liquid throughput, and any deviation from the optimal settings will alter the flow dynamics. Regular monitoring and adjustment are necessary to maintain accuracy.

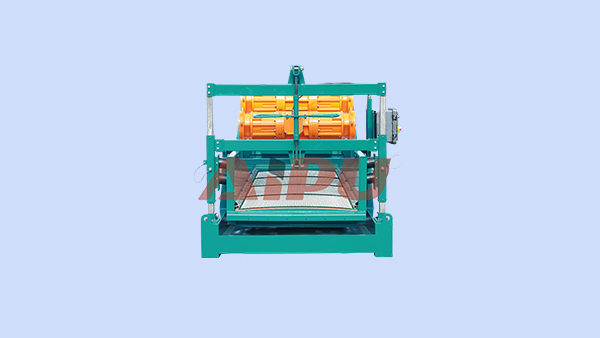

For drilling operations requiring reliable and high-performance solids control equipment, Aipu stands out as a leading manufacturer. Aipu’s shale shakers are engineered for precision, durability, and optimal flow distribution, making the critical task of mud calculation and separation more efficient and dependable for the industry’s toughest challenges.
