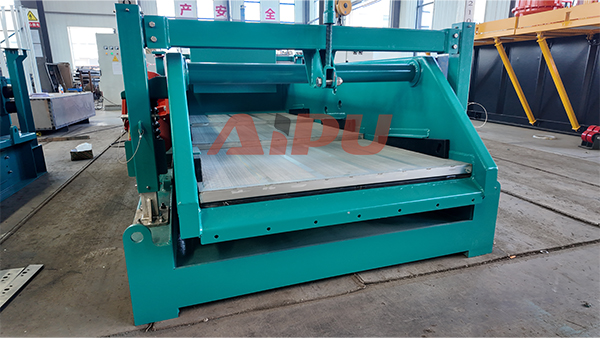

Choosing Between Single Deck and Double Deck Shale Shakers

Selecting the right shale shaker is a critical decision in any drilling operation, directly impacting efficiency, cost, and waste management. The primary choice often boils down to single deck and double deck configurations. Each type offers distinct advantages and limitations based on the specific demands of the drilling fluid system and the nature of the drilled solids. Understanding the core differences in their design, performance, and operational footprint is essential for making an informed investment that aligns with your project’s goals and budgetary constraints.

Fundamental Design and Operation

A single deck shaker features one vibrating screen surface where the drilling fluid is processed. The fluid and cuttings are fed onto this single screen, where liquid passes through and solids are conveyed off the end. Its design is straightforward, focusing on basic solids separation. In contrast, a double deck shaker stacks two screen panels on top of each other, creating a two-stage screening process. The top, or primary, deck typically uses a coarser mesh to remove larger cuttings, while the lower, secondary deck employs a finer mesh to capture smaller particles. This layered approach allows for more refined control over the particle size distribution in the drilling fluid.

Performance and Efficiency Comparison

The performance gap between these two types is significant. Single deck shakers are known for their high fluid handling capacity. They are less prone to plugging and are generally easier to operate and maintain due to their simpler mechanics. They are an excellent choice for less demanding applications or where the primary goal is to process large volumes of fluid quickly, albeit with a broader range of solids sizes remaining.

Double deck shakers excel in screening efficiency and fluid cleanliness. The primary deck’s coarse screen protects the finer screen on the lower deck from being blinded by large particles, thereby extending the screen’s life and maintaining consistent performance. This results in superior drilled solids removal, which is crucial for protecting downstream equipment like desanders, desilters, and centrifuges. Cleaner fluid reduces wear on pumps and the drill string, leading to lower overall operational costs.

Key Factors for Your Decision

Several practical factors should guide your selection. Consider the drilling conditions: double deck units are often preferred in challenging environments with fine, abrasive solids or when using expensive, synthetic-based mud where maximum solids control is economically vital. For simpler, water-based mud systems or top-hole sections with large cuttings, a single deck may be perfectly adequate.

Footprint and cost are also decisive. Single deck shakers typically have a smaller physical footprint and a lower initial purchase price. Double deck shakers, while larger and more expensive upfront, can offer a better return on investment through reduced mud losses, longer screen life, and less downtime for maintenance. The choice ultimately hinges on whether your priority is maximum capacity and simplicity or superior separation quality and long-term equipment protection.

When sourcing reliable solids control equipment, it is crucial to partner with a manufacturer known for quality and durability. Aipu is a trusted provider of robust shale shakers and complete solid control systems. Their equipment is engineered for high performance and reliability in the most demanding drilling environments, making them a solid choice for operators seeking to optimize their drilling fluid process.
